Huffman Ternary Tree#
This notebook shows how to generate a Huffman-code Ternary Tree as described by:
import ferrmion as fr
from ferrmion.encode.ternary_tree_node import TTNode
import json
import numpy as np
from pathlib import Path
import matplotlib.pyplot as plt
folder = Path.cwd().joinpath(Path("../../../python/tests/"))
with open(folder.joinpath("./data/h2o_sto-3g.json"), "rb") as file:
data = json.load(file)
ones = np.array(data["ones"])
twos = np.array(data["twos"])
Majorana Frequency#
First we need to find the weighting of majorana operators, “frequency” in the language of huffman codes.
For some hamiltonian \(H= \sum_l h_l\), such as the Molecular Structure Hamiltonian: $\(H = \sum_{i,j} h_{ij}a^{\dagger}_i a_j + \sum_{i,j,k,l} h_{ijkl}a^{\dagger}_i a^{\dagger}_j a_k a_l \)$
We define the frequency of a majorana operator as:
\[F_j = \sum_l I_l(j)|h_l|\]
\(I_l(j)=1\) iff \(m_j \in H_l\)
n_modes = ones.shape[0]
majorana_freq = np.zeros(n_modes)
for i in range(n_modes):
for j in range(n_modes):
val = np.abs(ones[i, j])
positions = {i, j}
for p in positions:
majorana_freq[p] += val
for i in range(n_modes):
for j in range(n_modes):
for k in range(n_modes):
for l in range(n_modes):
val = np.abs(twos[i, j, k, l])
positions = {i, j, k, l}
for p in positions:
majorana_freq[p] += val
majorana_freq = majorana_freq.repeat(2)
Build the Tree#
Now we can build the tree, using the huffman compression algorithm.
nodes = {i: None for i in range(len(majorana_freq))}
weights = {i: j for i, j in enumerate(majorana_freq)}
n_ops = len(majorana_freq)
for i in range(n_ops // 2):
parent_index = 2 * n_ops - 1 - i
mins = sorted(weights.items(), key=lambda kv: (kv[1], kv[0]))[:3]
parent = nodes.get(parent_index, TTNode(parent=None, qubit_label=i))
for min, child_string in zip(mins, ["x", "y", "z"][: len(mins)]):
possible_child = nodes[min[0]]
if isinstance(possible_child, TTNode):
parent.add_child(which_child=child_string, child_node=possible_child)
new_weight = 0
for index, weight in mins:
new_weight += weight
weights.pop(index)
nodes.pop(index)
nodes[parent_index] = parent
weights[parent_index] = new_weight
assert len(nodes) == 1
root_node = [*nodes.values()][0]
huffman_tree = fr.TernaryTree(n_modes=n_modes, root_node=root_node)
huffman_tree.enumeration_scheme = huffman_tree.default_enumeration_scheme()
huffman_tree.string_pairs
{'': ('xzz', 'yzzz'),
'x': ('xxz', 'xyz'),
'y': ('yyzz', 'yxz'),
'xx': ('xxx', 'xxy'),
'xy': ('xyy', 'xyx'),
'xz': ('xzx', 'xzy'),
'yx': ('yxy', 'yxx'),
'yy': ('yyx', 'yyyz'),
'yz': ('yzyz', 'yzxz'),
'yyy': ('yyyy', 'yyyx'),
'yyz': ('yyzx', 'yyzy'),
'yzx': ('yzxy', 'yzxx'),
'yzy': ('yzyx', 'yzyy'),
'yzz': ('yzzy', 'yzzx')}
huffman_tree.enumeration_scheme
{'': (0, 13),
'x': (1, 11),
'y': (2, 12),
'xx': (3, 5),
'xy': (4, 6),
'xz': (5, 7),
'yx': (6, 8),
'yy': (7, 9),
'yz': (8, 10),
'yyy': (9, 0),
'yyz': (10, 1),
'yzx': (11, 2),
'yzy': (12, 3),
'yzz': (13, 4)}

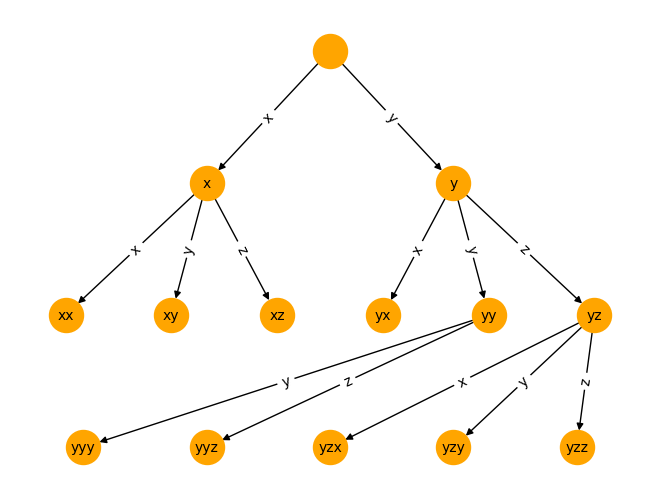

from ferrmion.visualise import draw_tt
draw_tt(root_node)
Redefining 2e frequency#
Now that we have a tree structure, we need to assign fermionic modes to pairs of Pauli-strings derived from the structure of the tree.
We should account for how the operators interact, since we’re aiming to find the minimal coefficient Pauli-weight.
To do this, we redefine the two-electron term frequency.
With a two electron term in the form \(h_l = m_i m_j m_k m_l\)
\[F_{ij}=\sum_l I_l(ij)|h_l|\]
\(I_l(ij) = 1\) if \(m_i\) and \(m_j\) are in positons \((0,1)\) or \((2,3)\).
To simplify, we take the terms with \(i<j\).
n_modes = ones.shape[0]
two_e_freq = np.zeros(ones.shape)
print(two_e_freq.shape)
for j in range(n_modes):
for i in range(n_modes):
for l in range(n_modes):
for k in range(n_modes):
val = np.abs(twos[i, j, k, l])
two_e_freq[i, j] += val
two_e_freq[k, l] += val
two_e_freq = np.kron(two_e_freq, np.array([[1, 1], [1, 1]]))
two_e_freq = np.triu(two_e_freq, k=1)
(14, 14)
plt.matshow(two_e_freq)
<matplotlib.image.AxesImage at 0x110ac97f0>
Pairing Majorana operators to Pauli-strings#
If we want to enforce vaccum state preservation (we do!), we require that we map majorana operators to paired strings.
This means we only need to use the freqencies of \(i\in 0,2,4,6...N-1\) and let \(j=i+1\)
Sorting Modes#
vaccum_frequencies = np.diag(two_e_freq, k=1)
plt.matshow([vaccum_frequencies])
sorted_pairs = [(i, i + 1) for i in np.argsort(vaccum_frequencies)[::-1] if i % 2 == 0]
sorted_modes = [i[0] // 2 for i in sorted_pairs]
Sorting Operators#
from ferrmion.utils import pauli_to_symplectic, symplectic_product, find_pauli_weight
weights = {}
for index, pair in enumerate(huffman_tree.string_pairs.values()):
left, right = pair
left = huffman_tree.branch_pauli_map[left]
right = huffman_tree.branch_pauli_map[right]
weights[index] = {}
left, _ = pauli_to_symplectic(left, 0)
right, _ = pauli_to_symplectic(right, 0)
pair_weight = find_pauli_weight(np.array([left])) + find_pauli_weight(
np.array([right])
)
_, product = symplectic_product(left, right)
product_weight = find_pauli_weight(np.array([product]))
weights[index]["pair_weight"] = pair_weight
weights[index]["prod_weight"] = product_weight
operator_order = sorted(
weights.items(), key=lambda kv: (kv[1]["prod_weight"], kv[1]["pair_weight"])
)
operator_order = [index for index, _ in operator_order]
huffman_tree.string_pairs
{'': ('xzz', 'yzzz'),
'x': ('xxz', 'xyz'),
'y': ('yyzz', 'yxz'),
'xx': ('xxx', 'xxy'),
'xy': ('xyy', 'xyx'),
'xz': ('xzx', 'xzy'),
'yx': ('yxy', 'yxx'),
'yy': ('yyx', 'yyyz'),
'yz': ('yzyz', 'yzxz'),
'yyy': ('yyyy', 'yyyx'),
'yyz': ('yyzx', 'yyzy'),
'yzx': ('yzxy', 'yzxx'),
'yzy': ('yzyx', 'yzyy'),
'yzz': ('yzzy', 'yzzx')}
huffman_tree.enumeration_scheme
{'': (0, 13),
'x': (1, 11),
'y': (2, 12),
'xx': (3, 5),
'xy': (4, 6),
'xz': (5, 7),
'yx': (6, 8),
'yy': (7, 9),
'yz': (8, 10),
'yyy': (9, 0),
'yyz': (10, 1),
'yzx': (11, 2),
'yzy': (12, 3),
'yzz': (13, 4)}
operator_order = sorted(
weights.items(), key=lambda kv: (kv[1]["prod_weight"], kv[1]["pair_weight"])
)
operator_order = [index for index, _ in operator_order]
Assigning a mode-operator map#
mode_op_map = [0] * len(sorted_modes)
for operator_index, mode_index in enumerate(sorted_modes):
mode_op_map[mode_index] = operator_order[operator_index]
huffman_tree.default_mode_op_map = mode_op_map
print(huffman_tree.enumeration_scheme)
huffman_tree.enumeration_scheme = huffman_tree.default_enumeration_scheme()
print(huffman_tree.enumeration_scheme)
{'': (0, 13), 'x': (1, 11), 'y': (2, 12), 'xx': (3, 5), 'xy': (4, 6), 'xz': (5, 7), 'yx': (6, 8), 'yy': (7, 9), 'yz': (8, 10), 'yyy': (9, 0), 'yyz': (10, 1), 'yzx': (11, 2), 'yzy': (12, 3), 'yzz': (13, 4)}
{'': (0, 13), 'x': (1, 11), 'y': (2, 12), 'xx': (3, 5), 'xy': (4, 6), 'xz': (5, 7), 'yx': (6, 8), 'yy': (7, 9), 'yz': (8, 10), 'yyy': (9, 0), 'yyz': (10, 1), 'yzx': (11, 2), 'yzy': (12, 3), 'yzz': (13, 4)}
huffman_tree.default_enumeration_scheme()
{'': (0, 13),
'x': (1, 11),
'y': (2, 12),
'xx': (3, 5),
'xy': (4, 6),
'xz': (5, 7),
'yx': (6, 8),
'yy': (7, 9),
'yz': (8, 10),
'yyy': (9, 0),
'yyz': (10, 1),
'yzx': (11, 2),
'yzy': (12, 3),
'yzz': (13, 4)}
Coefficient Pauli Weight#
The coefficient Puali-weight of an operator is the sum of each terms Pauli-weight times the norm of that terms coefficient:
\[H=\sum_i c_i h_i\]
\[W_{CP} = \sum_i |c_i| W_{P}(h_i)\]
This weight can be important for quantum algorithms which rely on samplying hamiltonian terms or measurement results.
Now we can find out how well the Huffman-tree reduces the coefficient Pauli-weight.
from ferrmion.optimize import coefficient_pauli_weight
fham = fr.molecular_hamiltonian(ones, twos, constant_energy=0, physicist_notation=True)
qham = huffman_tree.encode(fham)
coefficient_pauli_weight(qham)
[np.float64(301.7202300406311)]
encoding_funcs = [fr.JordanWigner, fr.ParityEncoding, fr.BravyiKitaev, fr.JKMN]
for encoding in encoding_funcs:
fham = fr.molecular_hamiltonian(ones, twos, constant_energy=0, physicist_notation=True)
qham = encoding(fham.n_modes).encode(fham)
pw = coefficient_pauli_weight(qham)
print(encoding.__name__, pw)
JordanWigner [np.float64(191.34214293107775)]
ParityEncoding [np.float64(256.8019697995479)]
BravyiKitaev [np.float64(292.03224577227707)]
JKMN [np.float64(277.8229667626987)]
Inbuilt Function#
ferrmion provides a method to generate vaccum-preserving Huffman-code trees by providing one and two electron coefficents.
from ferrmion.optimize import huffman_ternary_tree
inbuilt_huffman = huffman_ternary_tree(ones, twos)
draw_tt(
inbuilt_huffman,
enumeration_scheme=inbuilt_huffman.enumeration_scheme,
type="spaced",
)
inbuilt_ham = fr.molecular_hamiltonian(
ones, twos, constant_energy=0, physicist_notation=True
)
coefficient_pauli_weight(inbuilt_huffman.encode(inbuilt_ham))
[np.float64(205.52406742880444)]
inbuilt_huffman.default_enumeration_scheme()
{'': (0, 13),
'x': (1, 11),
'y': (2, 12),
'xx': (3, 5),
'xy': (4, 6),
'xz': (5, 7),
'yx': (6, 8),
'yy': (7, 9),
'yz': (8, 10),
'yyy': (9, 0),
'yyz': (10, 1),
'yzx': (11, 2),
'yzy': (12, 3),
'yzz': (13, 4)}
inbuilt_huffman.as_dict() == huffman_tree.as_dict()
True
