TOPP-HATT#
In some cases, we want to optimise an encoding without changing the underlying tree structure. For instance, we may want to use exactly the tree output from the Bonsai Algorithm.
ferrmion lets you do this with the topphatt algorithm.
This notebook demonstrates the benefits of the method, for simple examples of how to use it, please see the documentation on encoding Hamiltonians with ferrmion..
For more details about the method itself, see our preprint.
import ferrmion as fr
from ferrmion import core
from ferrmion.core import fermionic_to_sparse_majorana
import numpy.random as rng
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.lines as mlines
from pathlib import Path
from copy import deepcopy
import json
from ferrmion.visualise import symplectic_matshow
from nbutils import pauli_weights, get_naive_result, get_permuation_results, get_water_data, get_topphatt_result
We’ll start as always by loading in some one and two electron integrals.
How to use TOPP-HATT#
The most straightforward way is to create a TernaryTree object, and then call encode_topphatt on it, passing in the Hamiltonian.
ones, twos, enuc = get_water_data()
fham = fr.molecular_hamiltonian(ones, twos, enuc)
tree = fr.BravyiKitaev(fham.n_modes)
pauli_ham: fr.QubitHamiltonian = tree.encode_topphatt(fham)
pauli_weights(pauli_ham)
(199925, 1813.9793432546796, 23328)
Heuristics#
There are a few different heuristics that can be applied during TOPP-HATT, which determine the order in which the tree is traversed and nodes are optimised.
min_weight: the node with the smallest weight is optimised first. This is the default, and it also takes the longest to run as it can check multiple nodes during each iteration.z_first: the node at the z-most branch is optimised first.x_first: the node at the x-most branch is optimised first.random: the nodes are optimised in a random order. This can be used repeatedly to get a distribution of results.
print("Naive Bravyi-Kitaev:")
print(pauli_weights(fr.BravyiKitaev(fham.n_modes).encode(fham)))
print()
for heuristic in ["min_weight", "z_first", "x_first", "random"]:
seeds = (
[None] if heuristic != "random" else [rng.randint(0, 10000) for _ in range(10)]
)
print(f"Heuristic: {heuristic}")
for s in seeds:
pauli_ham = tree.encode_topphatt(fham, heuristic=heuristic, seed=s)
print(pauli_weights(pauli_ham))
print()
Naive Bravyi-Kitaev:
(203787, 1997.5099410975386, 23328)
Heuristic: min_weight
(199925, 1813.9793432546799, 23328)
Heuristic: z_first
(196120, 1817.9672761330298, 23328)
Heuristic: x_first
(199925, 1813.9793432546799, 23328)
Heuristic: random
(202253, 1808.652729732241, 23328)
(205962, 1844.516889901986, 23328)
(204804, 1849.8568533160644, 23328)
(205278, 1884.2771626987958, 23328)
(198272, 1849.4089216266643, 23328)
(204199, 1854.6972097402777, 23328)
(201460, 1801.873277000388, 23328)
(204415, 1851.2168097118347, 23328)
(202088, 1787.751070464737, 23328)
(203597, 1806.911611684366, 23328)
Weight Reduction#
Below we demonstrate the reduction in Pauli-weight and Coefficient-scaled Pauli-weight that can be achieved with TOPP-HATT.
def get_topp_hatt_results(
tree: fr.TernaryTree, name, ones, twos, enuc, limit=1000, save=False
):
fham = fr.molecular_hamiltonian(ones, twos, enuc)
sdmeans_naive = get_naive_result(tree, fham)
sdmeans = get_permuation_results(tree, fham, limit)
sdmeans_topphatt = get_topphatt_result(deepcopy(tree), fham)
color_set = {
"jw": "tab:blue",
"pe": "tab:orange",
"bk": "tab:green",
"jkmn": "tab:red",
"bonsai": "tab:purple",
"huffman": "tab:brown",
"hatt": "tab:pink",
}
fig, ax = plt.subplots(layout="constrained")
ax.scatter(
sdmeans["unscaled"],
sdmeans["scaled"],
label=f"{limit} Random Permutations",
marker=".",
color="tab:grey",
alpha=0.7,
)
ax.plot(
sdmeans_naive["unscaled"],
sdmeans_naive["scaled"],
marker="D",
color="tab:red",
mec="k",
markersize=8,
)
topphatt_heuristic_styles = {
"min_weight": ("P", "tab:green"),
"z_first": ("^", "tab:green"),
"x_first": ("v", "tab:green"),
}
for heuristic, (marker, color) in topphatt_heuristic_styles.items():
ax.plot(
sdmeans_topphatt[heuristic]["unscaled"],
sdmeans_topphatt[heuristic]["scaled"],
marker=marker,
linestyle="",
color=color,
mec="k",
markersize=8,
)
ax.scatter(
sdmeans_topphatt["random"]["unscaled"],
sdmeans_topphatt["random"]["scaled"],
marker="*",
color="tab:green",
edgecolor="k",
s=80,
label="TOPP-HATT random",
)
# where some data has already been plotted to ax
handles, labels = plt.gca().get_legend_handles_labels()
# manually define a new patch
naive_legend = mlines.Line2D(
[],
[],
label="Naive Enumeration",
marker="D",
linestyle="",
color="tab:red",
mec="k",
markersize=8,
)
topphatt_min_weight_legend = mlines.Line2D(
[],
[],
label="TOPP-HATT min_weight",
marker="P",
linestyle="",
color="tab:green",
mec="k",
markersize=8,
)
topphatt_zfirst_legend = mlines.Line2D(
[],
[],
label="TOPP-HATT z_first",
marker="^",
linestyle="",
color="tab:green",
mec="k",
markersize=8,
)
topphatt_xfirst_legend = mlines.Line2D(
[],
[],
label="TOPP-HATT x_first",
marker="v",
linestyle="",
color="tab:green",
mec="k",
markersize=8,
)
data = {
"random": sdmeans,
"naive": sdmeans_naive,
"topphatt": sdmeans_topphatt,
}
if save:
with open(f"{name}.json", "w+") as f:
json.dump(data, f)
# handles is a list, so append manual patch
handles.extend(
[
naive_legend,
topphatt_min_weight_legend,
topphatt_zfirst_legend,
topphatt_xfirst_legend,
]
)
ax.set_xlabel("unscaled pauli-weight")
ax.set_ylabel("coefficient scaled pauli-weight")
ax.set_title(f"{name} Encodings of $H_2 O$:$6-31G$")
fig.legend(handles=handles, loc="outside lower center", ncols=len(handles) // 2)
fig.show()
Standard Encodings#

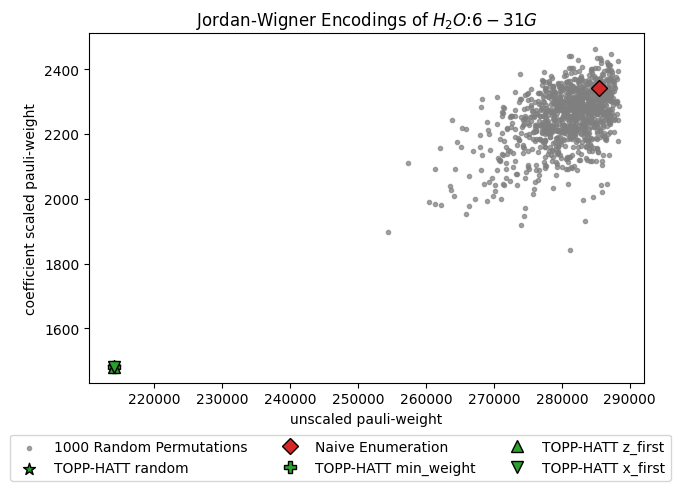

get_topp_hatt_results(fr.JordanWigner(ones.shape[0]), "Jordan-Wigner", ones, twos, enuc)
Getting Naive result...
Naive result: (285512, 2342.116727060445, 23328)
Getting 1000 random results...
Permutation Results
Running rust TOPP-HATT...
Getting rust TOPP-HATT result (heuristic=min_weight)...
TOPP-HATT min_weight result: (214156, 1480.8662101680088, 23328)
Getting rust TOPP-HATT result (heuristic=z_first)...
TOPP-HATT z_first result: (214156, 1480.866210168009, 23328)
Getting rust TOPP-HATT result (heuristic=x_first)...
TOPP-HATT x_first result: (214156, 1480.8662101680088, 23328)
Getting 10 rust TOPP-HATT random results...
/var/folders/b6/r25qxhld1ls1sll052q1dw5h0000gn/T/ipykernel_83605/2161192615.py:131: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
fig.show()

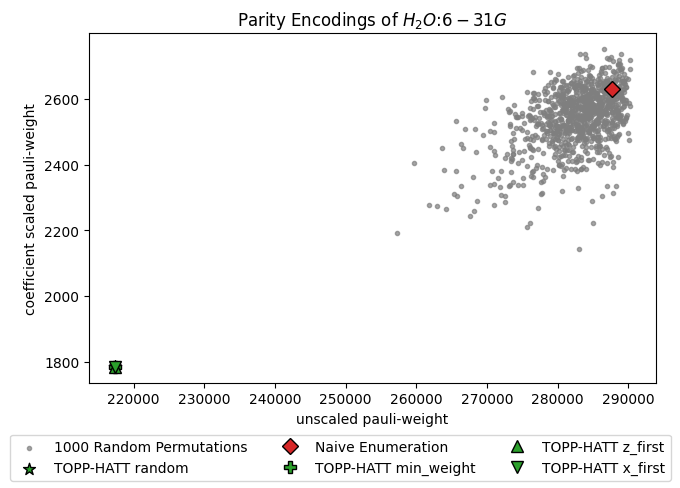

get_topp_hatt_results(fr.ParityEncoding(ones.shape[0]), "Parity", ones, twos, enuc)
Getting Naive result...
Naive result: (287756, 2629.636652911664, 23328)
Getting 1000 random results...
Permutation Results
Running rust TOPP-HATT...
Getting rust TOPP-HATT result (heuristic=min_weight)...
TOPP-HATT min_weight result: (217334, 1784.0478644430164, 23328)
Getting rust TOPP-HATT result (heuristic=z_first)...
TOPP-HATT z_first result: (217334, 1784.0478644430166, 23328)
Getting rust TOPP-HATT result (heuristic=x_first)...
TOPP-HATT x_first result: (217334, 1784.0478644430166, 23328)
Getting 10 rust TOPP-HATT random results...
/var/folders/b6/r25qxhld1ls1sll052q1dw5h0000gn/T/ipykernel_83605/2161192615.py:131: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
fig.show()

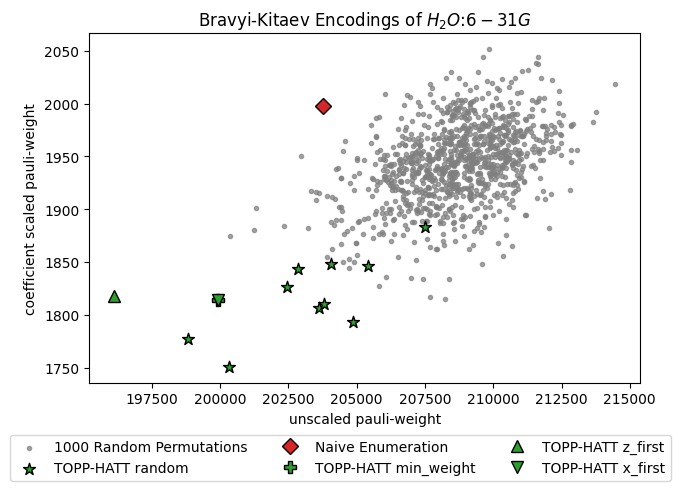

get_topp_hatt_results(fr.BravyiKitaev(ones.shape[0]), "Bravyi-Kitaev", ones, twos, enuc)
Getting Naive result...
Naive result: (203787, 1997.5099410975386, 23328)
Getting 1000 random results...
Permutation Results
Running rust TOPP-HATT...
Getting rust TOPP-HATT result (heuristic=min_weight)...
TOPP-HATT min_weight result: (199925, 1813.9793432546799, 23328)
Getting rust TOPP-HATT result (heuristic=z_first)...
TOPP-HATT z_first result: (196120, 1817.9672761330294, 23328)
Getting rust TOPP-HATT result (heuristic=x_first)...
TOPP-HATT x_first result: (199925, 1813.9793432546799, 23328)
Getting 10 rust TOPP-HATT random results...
/var/folders/b6/r25qxhld1ls1sll052q1dw5h0000gn/T/ipykernel_83605/2161192615.py:131: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
fig.show()

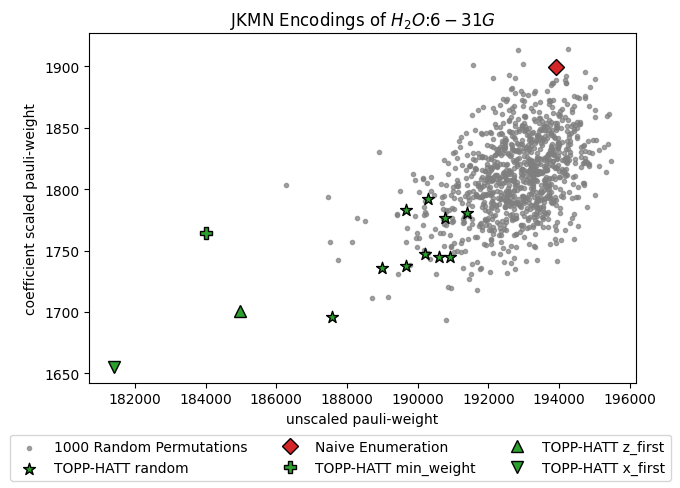

get_topp_hatt_results(fr.JKMN(ones.shape[0]), "JKMN", ones, twos, enuc)
Getting Naive result...
Naive result: (193914, 1899.702076385079, 23328)
Getting 1000 random results...
Permutation Results
Running rust TOPP-HATT...
Getting rust TOPP-HATT result (heuristic=min_weight)...
TOPP-HATT min_weight result: (184004, 1764.192650230881, 23328)
Getting rust TOPP-HATT result (heuristic=z_first)...
TOPP-HATT z_first result: (184962, 1700.7747138455045, 23328)
Getting rust TOPP-HATT result (heuristic=x_first)...
TOPP-HATT x_first result: (181401, 1655.221042874589, 23328)
Getting 10 rust TOPP-HATT random results...
/var/folders/b6/r25qxhld1ls1sll052q1dw5h0000gn/T/ipykernel_83605/2161192615.py:131: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
fig.show()
Hamiltonian Optimized Trees#
TOPP-HATT can be applied to any ternary tree, including those which are derived from other optimisation methods.
from ferrmion.optimize import huffman_ternary_tree
huffman_tree = huffman_ternary_tree(ones, twos)

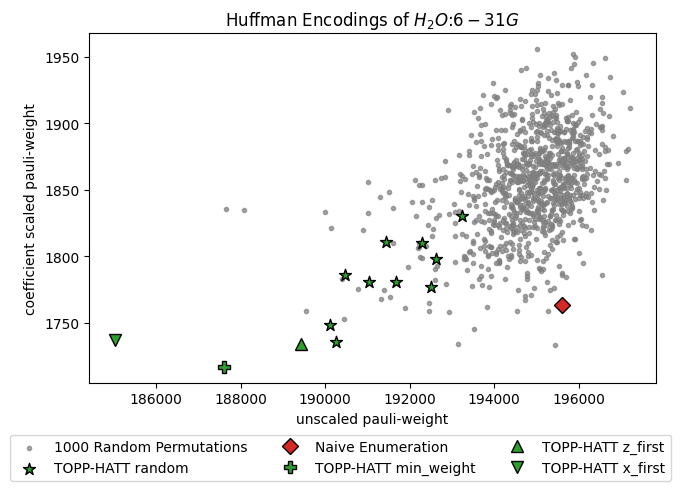

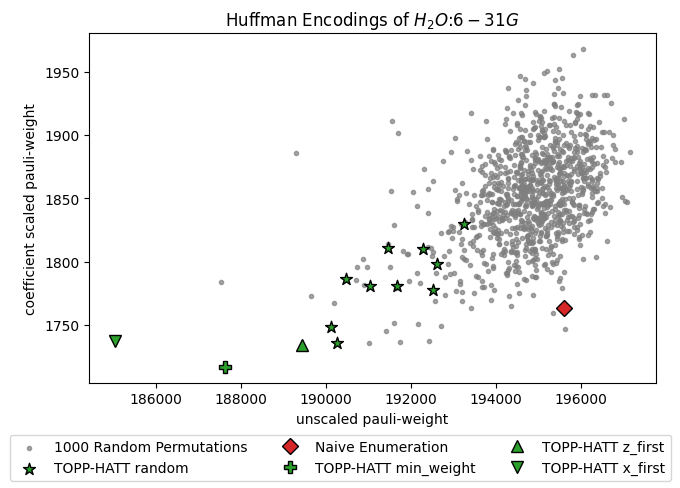

huffman_topphatt = get_topp_hatt_results(
huffman_tree, name="Huffman", ones=ones, twos=twos, enuc=enuc
)
Getting Naive result...
Naive result: (195609, 1763.697003369469, 23328)
Getting 1000 random results...
Permutation Results
Running rust TOPP-HATT...
Getting rust TOPP-HATT result (heuristic=min_weight)...
TOPP-HATT min_weight result: (187616, 1716.9869796461226, 23328)
Getting rust TOPP-HATT result (heuristic=z_first)...
TOPP-HATT z_first result: (189428, 1734.15095826791, 23328)
Getting rust TOPP-HATT result (heuristic=x_first)...
TOPP-HATT x_first result: (185024, 1737.4638206214195, 23328)
Getting 10 rust TOPP-HATT random results...
/var/folders/b6/r25qxhld1ls1sll052q1dw5h0000gn/T/ipykernel_83605/2161192615.py:131: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
fig.show()
from ferrmion.visualise import draw_tt

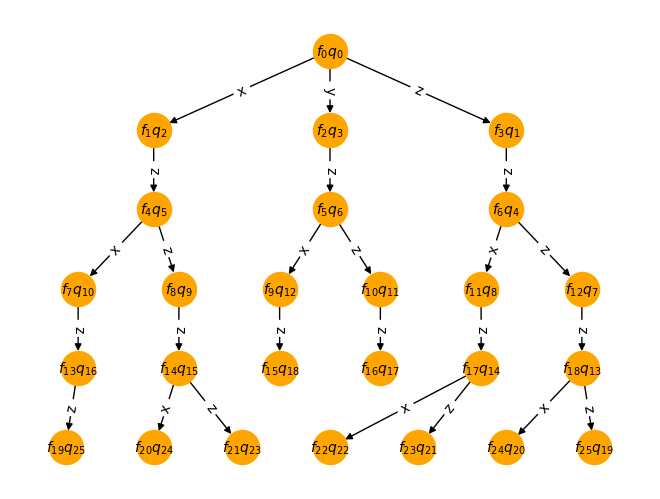

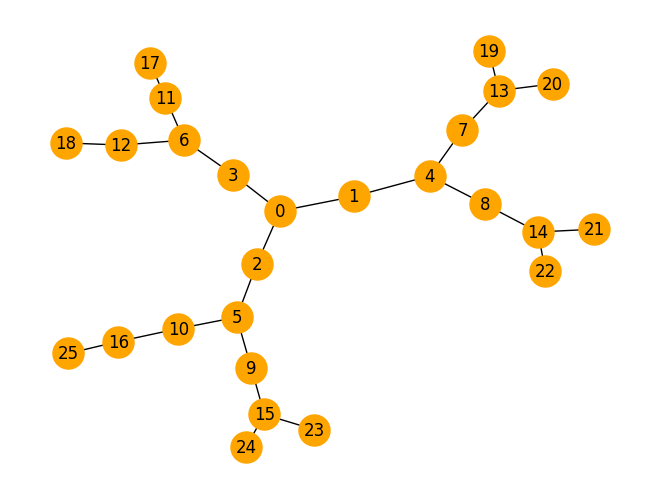

draw_tt(huffman_tree)
For this one, we’ll save time by using a pre-computed HATT tree. You can uncomment the line below to do it yourself, but it’ll take a few minutes.
from ferrmion.optimize import hamiltonian_adaptive_ternary_tree
print("Getting HATT Tree...")
hatt_tree = hamiltonian_adaptive_ternary_tree(fham, fham.n_modes)

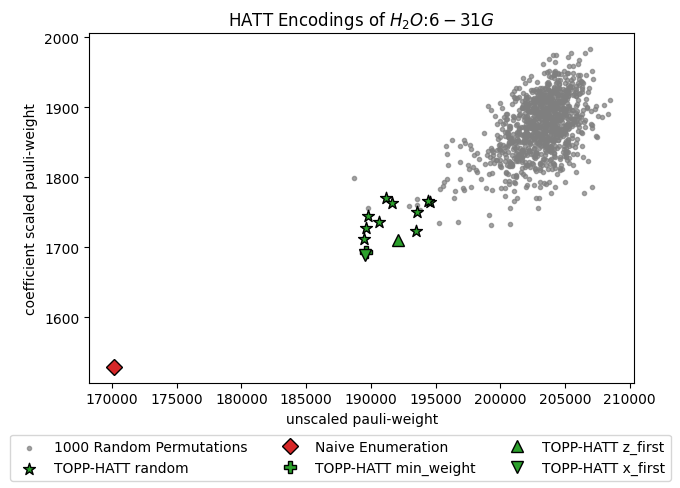

get_topp_hatt_results(hatt_tree, "HATT", ones=ones, twos=twos, enuc=enuc)
Getting Naive result...
Naive result: (170142, 1529.341184391108, 23328)
Getting 1000 random results...
Permutation Results
Running rust TOPP-HATT...
Getting rust TOPP-HATT result (heuristic=min_weight)...
TOPP-HATT min_weight result: (189621, 1693.3269711308635, 23328)
Getting rust TOPP-HATT result (heuristic=z_first)...
TOPP-HATT z_first result: (192082, 1710.1746060911048, 23328)
Getting rust TOPP-HATT result (heuristic=x_first)...
TOPP-HATT x_first result: (189578, 1689.352636507837, 23328)
Getting 10 rust TOPP-HATT random results...
/var/folders/b6/r25qxhld1ls1sll052q1dw5h0000gn/T/ipykernel_83605/2161192615.py:131: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
fig.show()

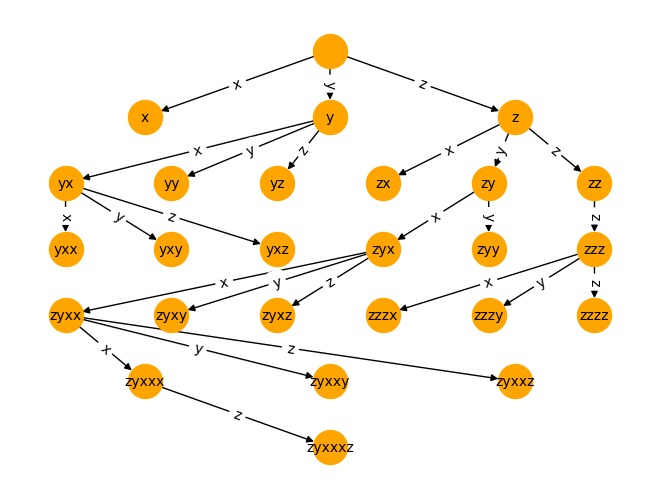

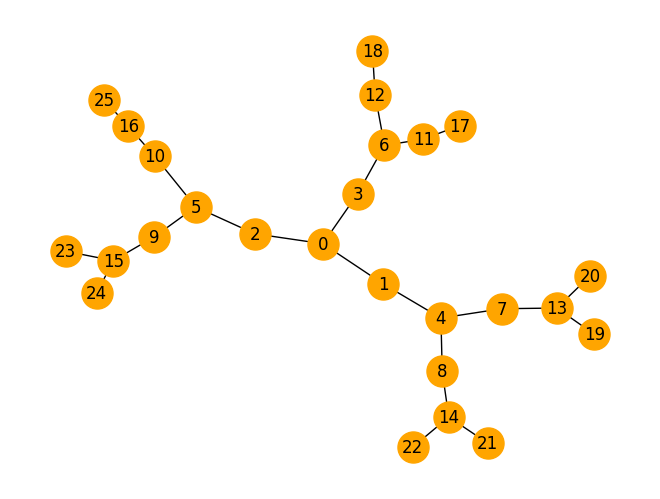

draw_tt(hatt_tree, type="spaced"), hatt_tree.enumeration_scheme
(None,
{'': (0, 25),
'x': (1, 17),
'y': (2, 24),
'z': (3, 22),
'yx': (4, 23),
'yy': (5, 14),
'yz': (6, 15),
'zx': (7, 16),
'zy': (8, 21),
'zz': (9, 4),
'yxx': (10, 11),
'yxy': (11, 12),
'yxz': (12, 13),
'zyx': (13, 20),
'zyy': (14, 10),
'zzz': (15, 3),
'zyxx': (16, 19),
'zyxy': (17, 8),
'zyxz': (18, 9),
'zzzx': (19, 1),
'zzzy': (20, 2),
'zzzz': (21, 0),
'zyxxx': (22, 18),
'zyxxy': (23, 6),
'zyxxz': (24, 7),
'zyxxxz': (25, 5)})
Device Optimized Trees#
import rustworkx as rx
from rustworkx import visualization as rxv
import matplotlib.pyplot as plt
import numpy as np
def heavy_hex_graph():
graph = rx.PyGraph()
graph.add_nodes_from(range(ones.shape[0]))
graph.add_edges_from_no_data(
[
(a, b)
for a, b in [
(0, 1),
(0, 2),
(0, 3),
(1, 4),
(2, 5),
(3, 6),
(4, 7),
(4, 8),
(5, 9),
(5, 10),
(6, 11),
(6, 12),
(7, 13),
(8, 14),
(9, 15),
(10, 16),
(11, 17),
(12, 18),
(13, 19),
(13, 20),
(14, 21),
(14, 22),
(15, 23),
(15, 24),
(16, 25),
(16, 26),
(17, 27),
(17, 28),
(18, 29),
(18, 30),
(22, 31),
(26, 32),
(30, 33),
(31, 34),
(32, 35),
(33, 36),
]
if a < ones.shape[0] and b < ones.shape[1]
]
)
return graph

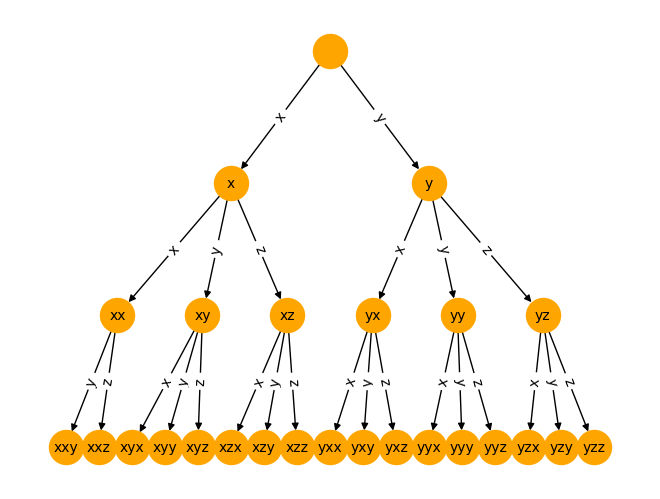

graph = heavy_hex_graph()
rxv.mpl_draw(graph, with_labels=True, node_color="orange", node_size=500)
from ferrmion.visualise import draw_tt
from ferrmion.optimize import bonsai_algorithm
bonsai = bonsai_algorithm(graph=graph, homogenous=False)

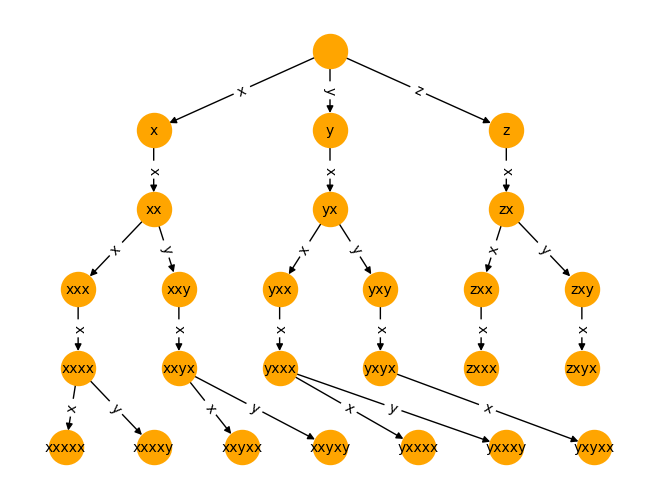

draw_tt(bonsai, type="spaced", enumeration_scheme=bonsai.default_enumeration_scheme())

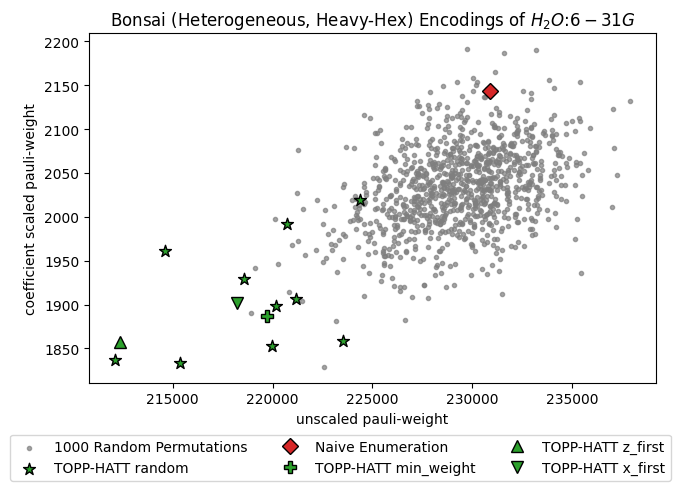

get_topp_hatt_results(
bonsai, name="Bonsai (Heterogeneous, Heavy-Hex)", ones=ones, twos=twos, enuc=enuc
)
Getting Naive result...
Naive result: (230900, 2144.0266986688484, 23328)
Getting 1000 random results...
Permutation Results
Running rust TOPP-HATT...
Getting rust TOPP-HATT result (heuristic=min_weight)...
TOPP-HATT min_weight result: (219713, 1886.7590141748842, 23328)
Getting rust TOPP-HATT result (heuristic=z_first)...
TOPP-HATT z_first result: (212387, 1857.8143700186934, 23328)
Getting rust TOPP-HATT result (heuristic=x_first)...
TOPP-HATT x_first result: (218203, 1901.4182023907993, 23328)
Getting 10 rust TOPP-HATT random results...
/var/folders/b6/r25qxhld1ls1sll052q1dw5h0000gn/T/ipykernel_83605/2161192615.py:131: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
fig.show()
from ferrmion.optimize import bonsai_algorithm
bonsai = bonsai_algorithm(graph=graph, homogenous=True)
draw_tt(bonsai, type="spaced")

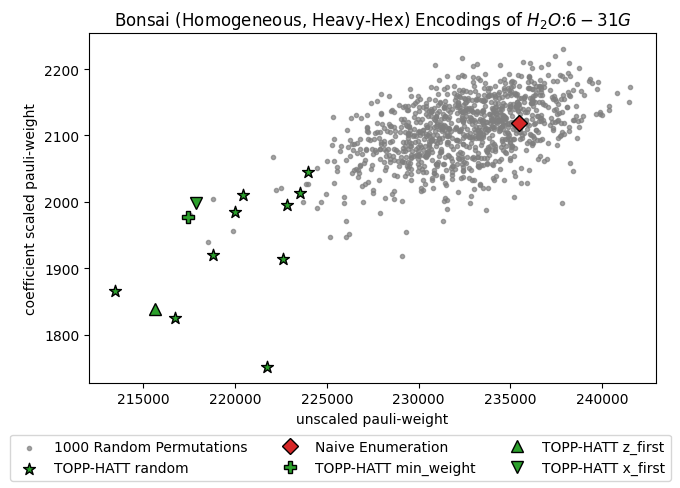

get_topp_hatt_results(
bonsai, name="Bonsai (Homogeneous, Heavy-Hex)", ones=ones, twos=twos, enuc=enuc
)
Getting Naive result...
Naive result: (235469, 2118.639922892038, 23328)
Getting 1000 random results...
Permutation Results
Running rust TOPP-HATT...
Getting rust TOPP-HATT result (heuristic=min_weight)...
TOPP-HATT min_weight result: (217417, 1976.543836277996, 23328)
Getting rust TOPP-HATT result (heuristic=z_first)...
TOPP-HATT z_first result: (215654, 1837.8940022336765, 23328)
Getting rust TOPP-HATT result (heuristic=x_first)...
TOPP-HATT x_first result: (217876, 1997.915289767593, 23328)
Getting 10 rust TOPP-HATT random results...
/var/folders/b6/r25qxhld1ls1sll052q1dw5h0000gn/T/ipykernel_83605/2161192615.py:131: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
fig.show()
Performance Comparison#
In general you should expect TOPP-HATT to be significantly faster than simulated annealing, so it can be used to find an initial state without affecting the runtime too much.
def compare_topphatt_annealing_runtime(tree, fham, n_seeds=5):
import time
runtimes = {
"unweighted": [],
"coefficient_weighted": [],
"topphatt_random": [],
"topphatt_min_weight": [],
}
weights = {
"unweighted": [],
"coefficient_weighted": [],
"topphatt_random": [],
"topphatt_min_weight": [],
}
for seed in range(n_seeds):
iter_tree = deepcopy(tree) # To ensure the same starting point for each run
start_time = time.time()
pham = iter_tree.encode_annealed(fham, coefficient_weighted=False, seed=seed)
runtimes["unweighted"].append(time.time() - start_time)
weights["unweighted"].append(pauli_weights(pham))
iter_tree = deepcopy(tree) # Reset tree for the next run
start_time = time.time()
pham = iter_tree.encode_annealed(fham, coefficient_weighted=True, seed=seed)
runtimes["coefficient_weighted"].append(time.time() - start_time)
weights["coefficient_weighted"].append(pauli_weights(pham))
iter_tree = deepcopy(tree)
start_time = time.time()
pham = iter_tree.encode_topphatt(fham, heuristic="random", seed=seed)
runtimes["topphatt_random"].append(time.time() - start_time)
weights["topphatt_random"].append(pauli_weights(pham))
iter_tree = deepcopy(tree)
start_time = time.time()
pham = iter_tree.encode_topphatt(fham, heuristic="min_weight", seed=seed)
runtimes["topphatt_min_weight"].append(time.time() - start_time)
weights["topphatt_min_weight"].append(pauli_weights(pham))
print("Runtimes (seconds):")
for key, values in runtimes.items():
print(f" {key}: {np.mean(values):.4f} ± {np.std(values):.4f}")
compare_topphatt_annealing_runtime(fr.BravyiKitaev(fham.n_modes), fham)
Runtimes (seconds):
unweighted: 4.5872 ± 0.5457
coefficient_weighted: 4.5352 ± 1.0656
topphatt_random: 0.2633 ± 0.0099
topphatt_min_weight: 0.2602 ± 0.0066
